Wall bracket for trusses F3X/F4X and pipes.

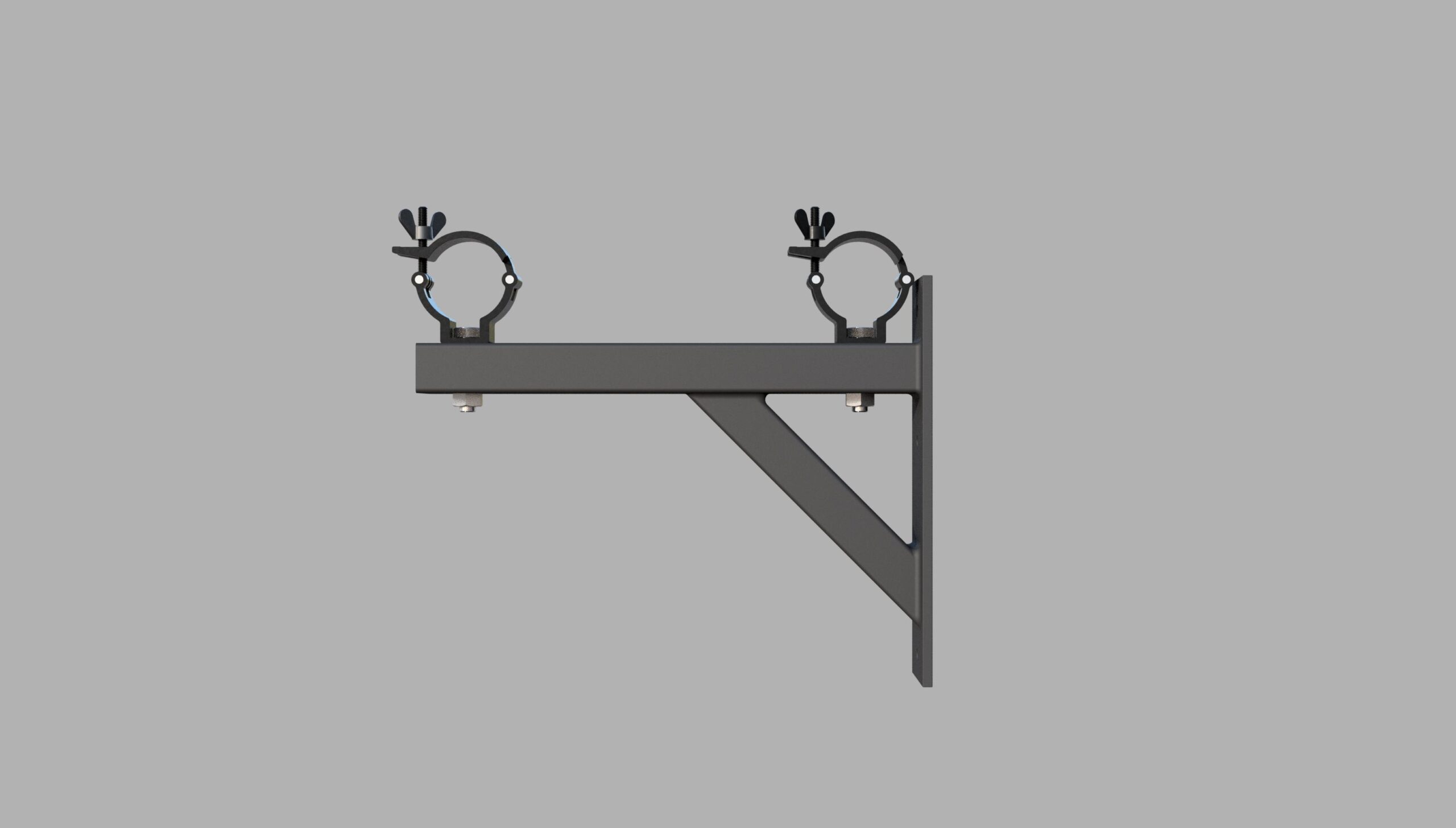

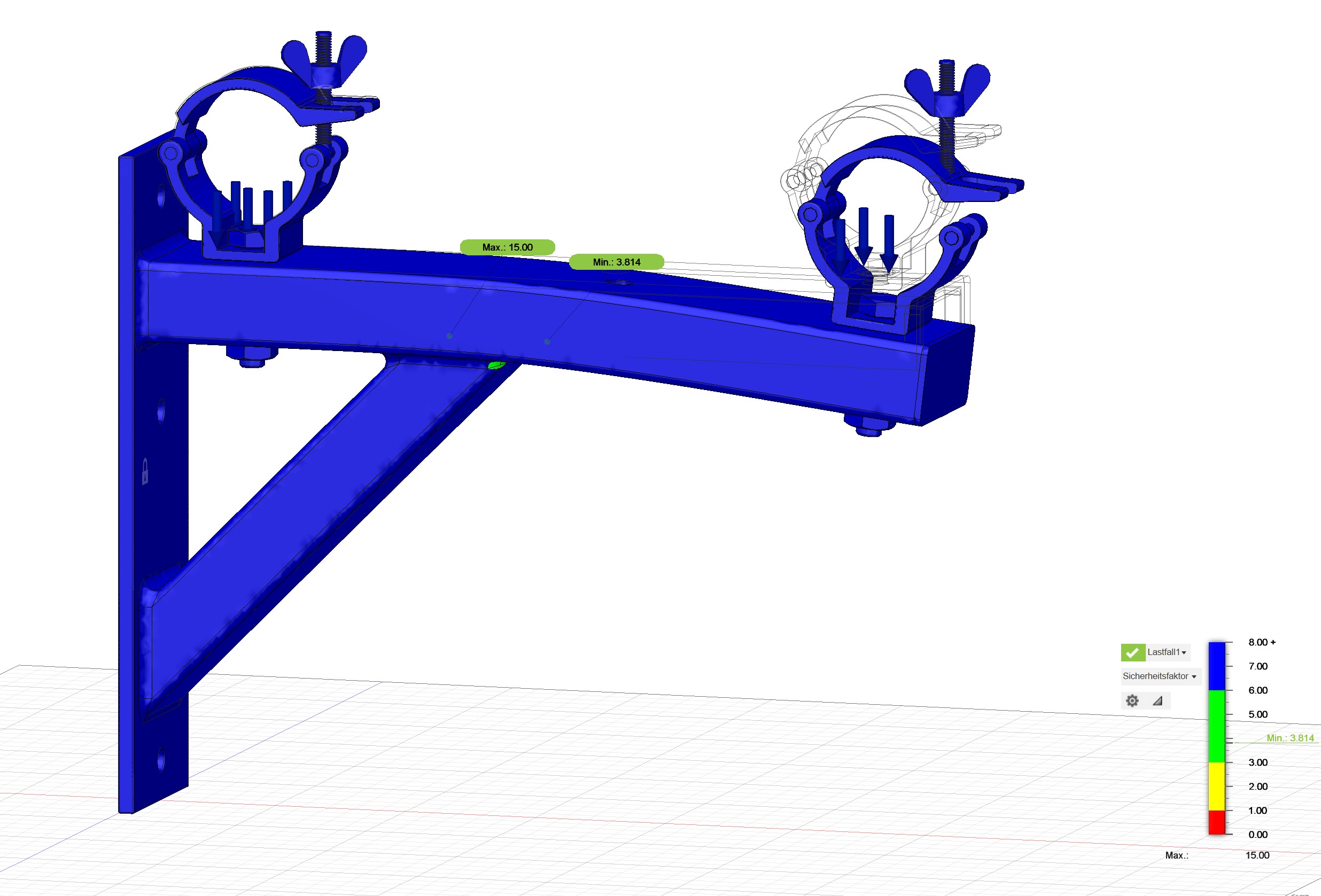

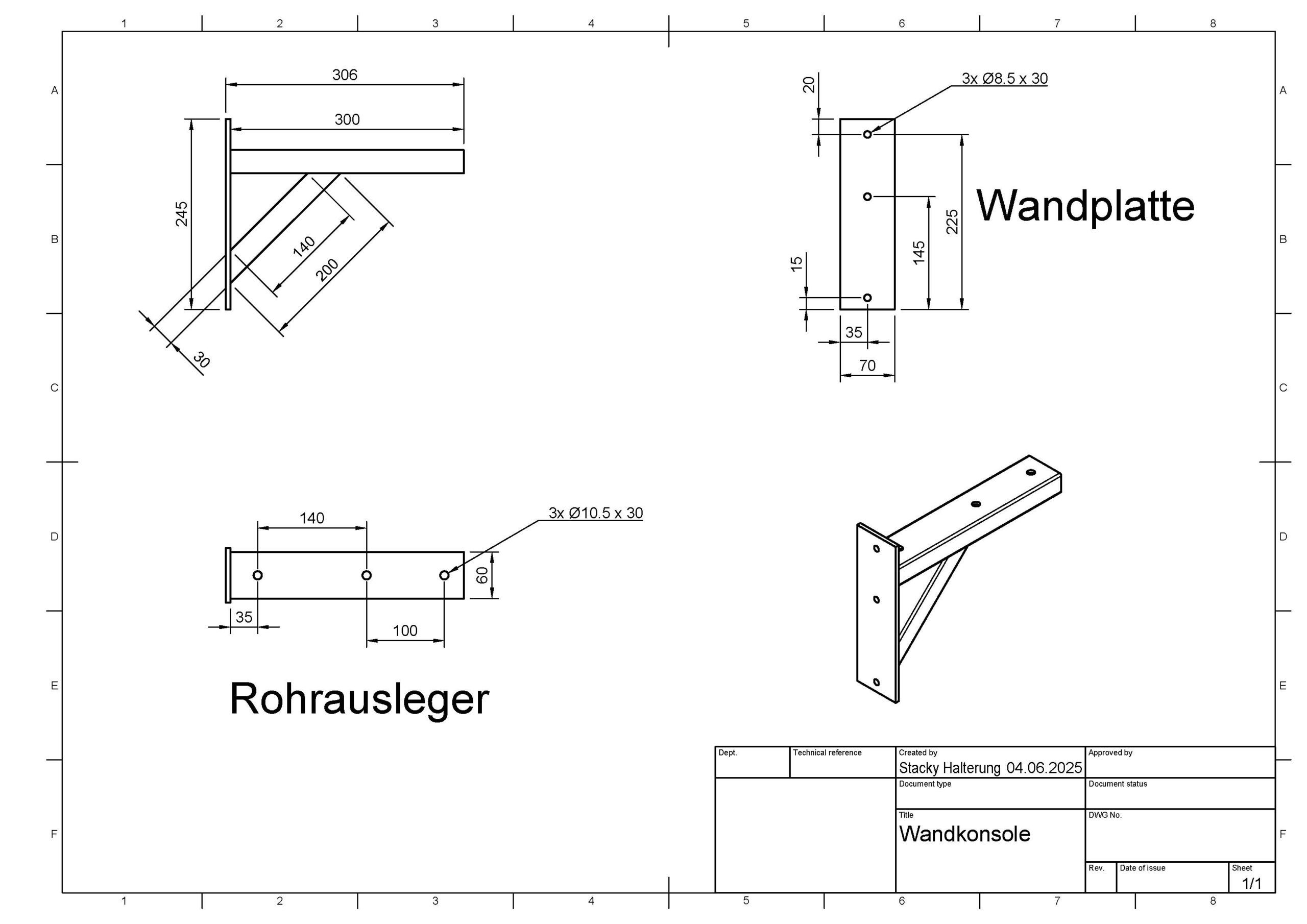

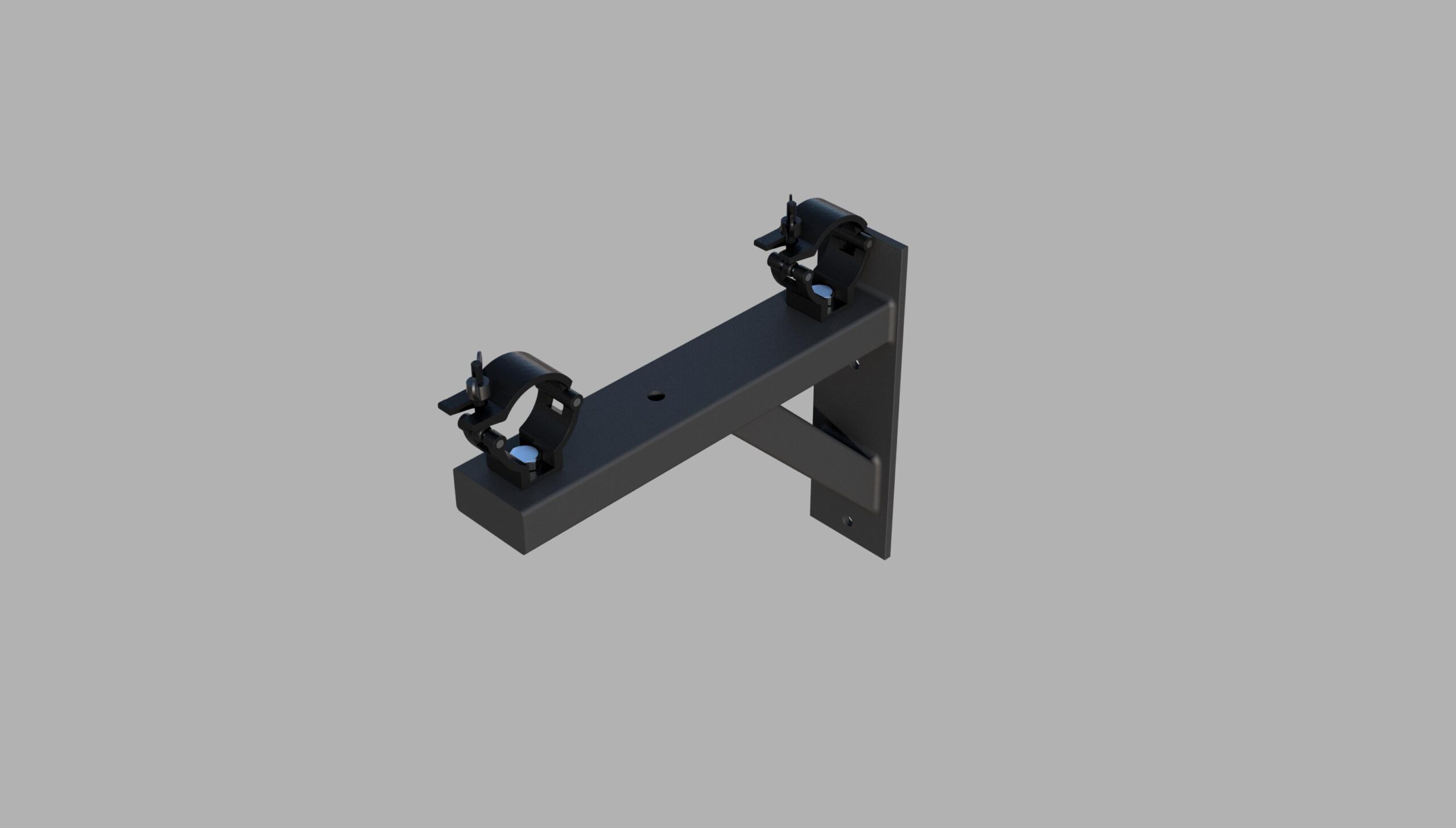

Wall bracket for attaching truss types F32, F33, F34, F42, F43 or F44. The bracket is also suitable for mounting pipes in the typical sizes of 35mm/50mm/60mm. The couplers for holding the pipes and trusses are flexibly adjustable. It is therefore possible to mount the trusses parallel or at right angles to the wall. The bracket consists of the wall bracket and 2x half clamp (standard 50mm coupler black 100kg). Available with powder coating in black RAL 9005 ( other RAL colours available on request). The dimensions of the bracket can be found in the drawing. The base plate is made of 5mm thick steel. The outgoing tubes are made of 3mm mild steel. The design allows a vertical load of the pipe up to 100 kg. For a construction with a higher load capacity, please contact us!
