Monitor crossbar mount (Vesa 400)

Monitor mount on trusses and pipes up to VESA standard 400

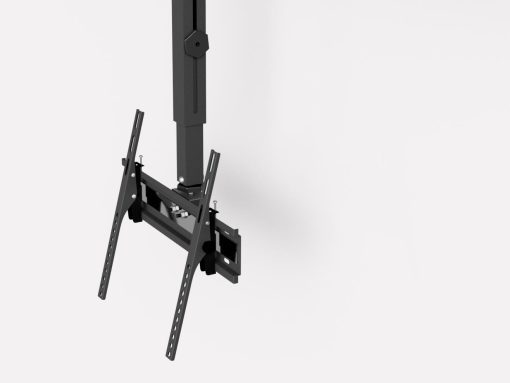

The monitor truss mounts (Vesa) allow quick and precise mounting of monitors up to VESA standard 400 x 400mm. The monitor can be freely rotated 360° around its own axis. Like all Stacky Store products, the truss mount is modular and can be added to or modified with replacement parts. A mount consists of the VESA plate, the halfcoupler for attachment to the crossbar and the extension tubes (fixed or variable length). An overview of the available variants of the tubes can be found in the selection above. On request, we also deliver the bracket with a self-hanging pipe clamp. For brackets with higher loads and special lengths, please contact us! To illustrate the function, you will find an animation of the mount in the “Video” tab.

Upon purchase, you will receive the monitor crossbar mount screwed in place. You can order additional modules to modify your bracket at a later date. You will also find detailed information in the Operating Instructions

The monitor truss mount has proven itself especially in the field:

• of the professional event technology
• the theater technology
• for a speedy setup at trade shows and concerts.

Overview of VESA standards

The Video Electronics Standards Association (VESA) has created a worldwide standardization of mounting options for wall and ceiling mounts for LCD, plasma, and TFT monitors with the VESA standards. Most manufacturers adhere to this standardization, but it is advisable to check this against the monitor’s user manual. There are standards from VESA 50 to VESA 800 x 400. The designation is composed of the distance between the threads. So bedeutet VESA 75 ein Lochabstand von 75 mm quadratisch und VESA 800 x 400 einen Lochabstand von 800 mm horizontal und 400 mm vertikal. Here finden sie mehr Informationen zur VESA-Norm.

The following VESA standards are available: 50, 75, 100, 200×100, 200, 400, 600×200, 600×400, 600
(not exhaustive)

Vesa mounts meets 50, 75, 100, 200×100, 200, 300, 400 standards.
