Universal truss mount for projector

The universal truss mount for projectors and projectors can be mounted on all common trusses and tubes . Once installed, you can set the video projection via two separate axes. In contrast to the widely used ball joints, this allows for a more accurate setup of the image. Subsequent corrections due to keystone distortion / the keystone are thus minimized. In many cases, this results in better projections.

The specified length refers to the distance from the bottom edge of the crosshead to the perforated plate. The quawire tubes of the Universal Bracket are made of durable coated aluminum, they are lightweight, robust and require no maintenance.

Just like all products of the Stacky Store, the universal truss mount for projectors has a modular design and can be
supplemented or modified with spare parts. A bracket consists of the six-sided perforated plate, coupler and extension tubes, which are available in variable and fixed lengths. An overview of the available variants of the tubes can be found in the selection above.

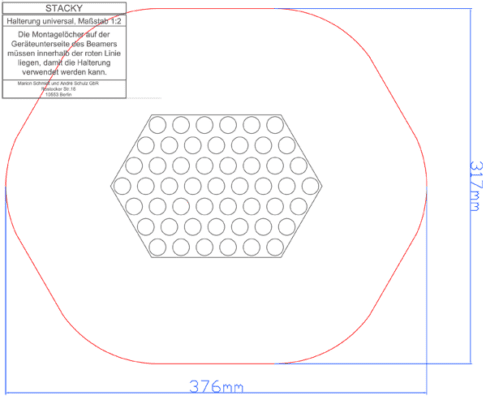

The following graphic shows the dimensions of the bracket (8mm holes):

The universal truss mount for projectors has proven itself especially in the field:

• of the professional event technology
• on stage installations in the theater
• for a speedy setup at trade shows and concerts.

With the purchase you get the truss holder screwed. You can order additional modules at any time to subsequently modify your mount.

You can also find detailed information in the operating instructions.
