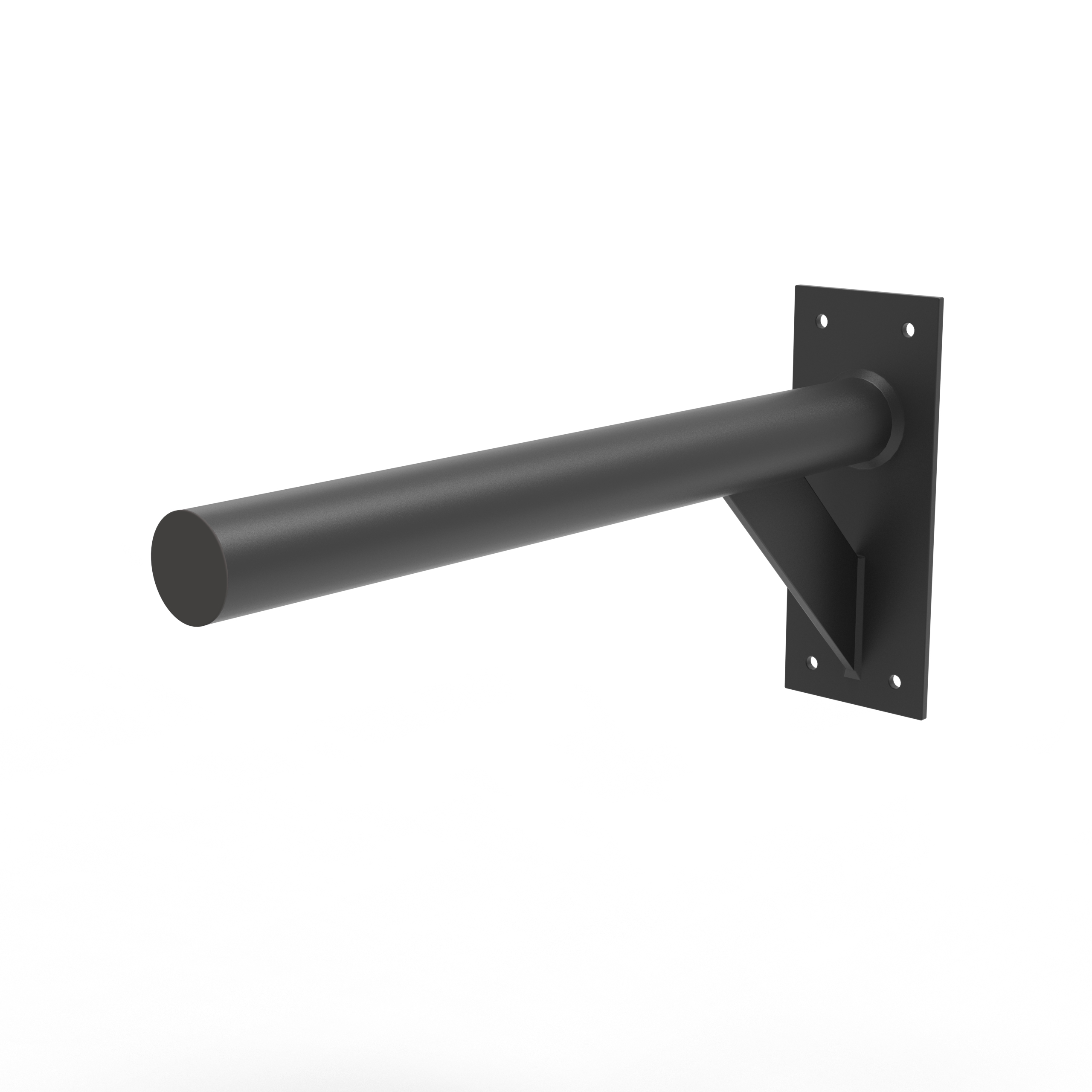

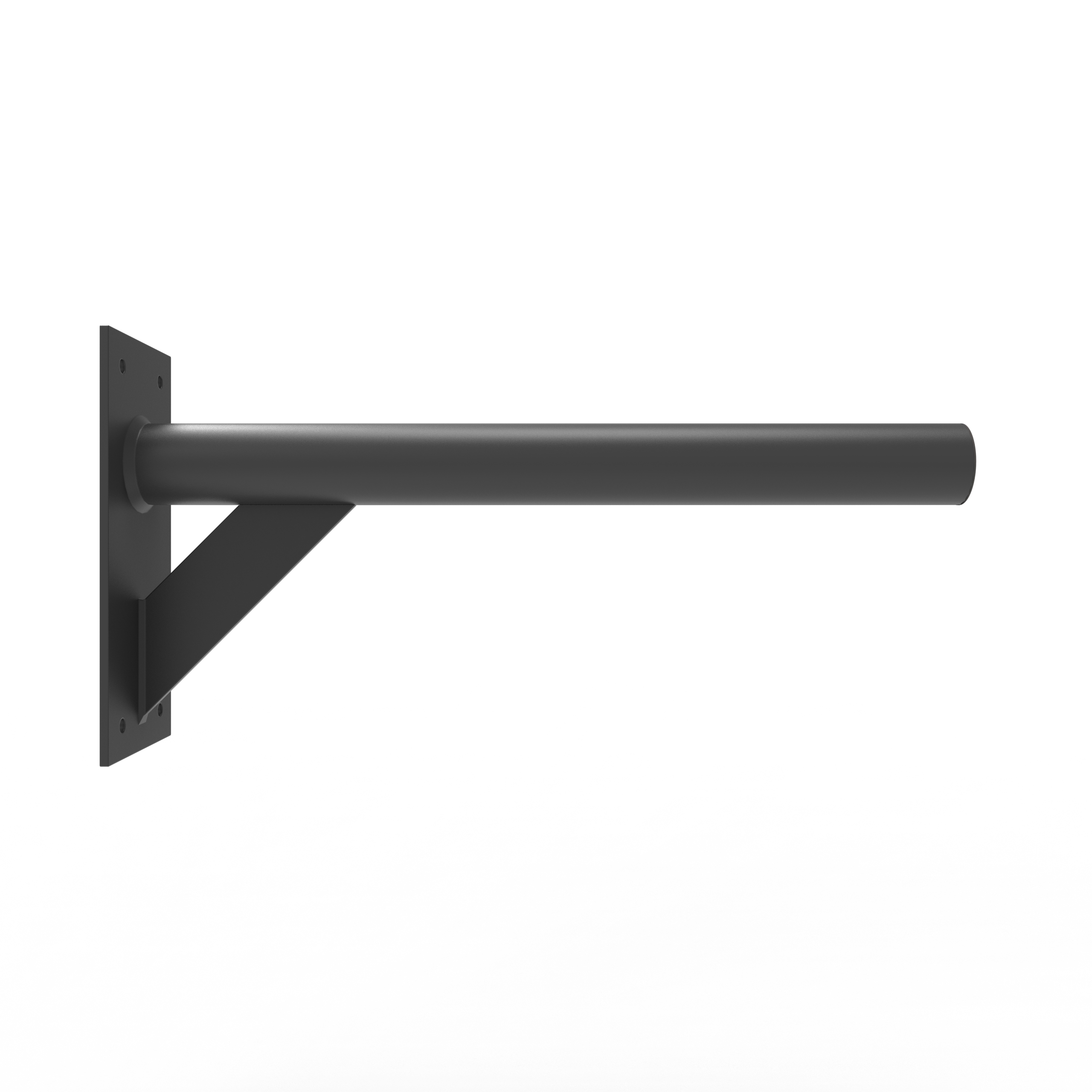

Universal pipe mount for wall mounting (black)

Universal pipe bracket for secure wall mounting

Our robust pipe bracket allows pipes to be securely attached to the wall and is the ideal solution for applications in the event, trade fair and industrial sectors.

✔ Compatible with common truss tube sizes
Available for 50 mm pipe diameters (35 mm and 60 mm tubes or other sizes are available on request).

✔ Freely selectable length of the pipe
Select your desired pipe length (min. 20cm to max. 60cm)

✔ Extremely stable and resilient

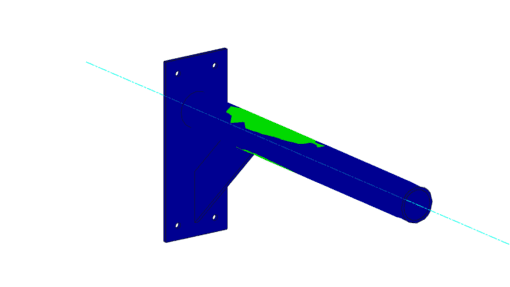

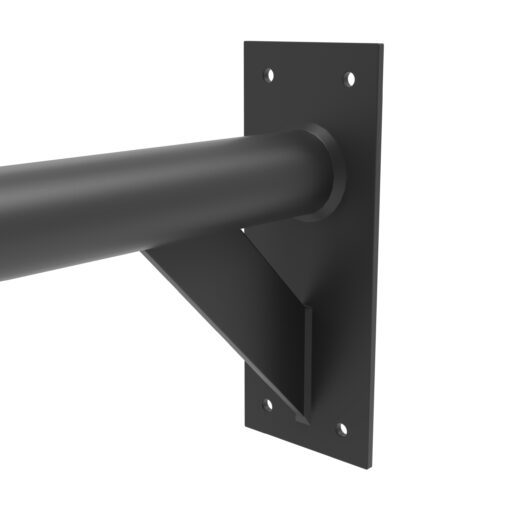

The bracket consists of a high-strength steel construction with 4 mm steel tube and multi-layer welds. It can withstand a load of up to 100 kg on the outer edge of the pipe – with a safety factor of over 2. We will send you the structural analysis on request.

✔ Designed
for the attachment of common truss couplers, the bracket offers a reliable and durable solution for professional use. Suitable for mounting speakers, lighting, projectors and monitors.

✔ Custom color options
Available in black or white as standard (powder coating). Also available in any RAL colour on request.

🔩 Quick and easy installation – for maximum efficiency and safety.
