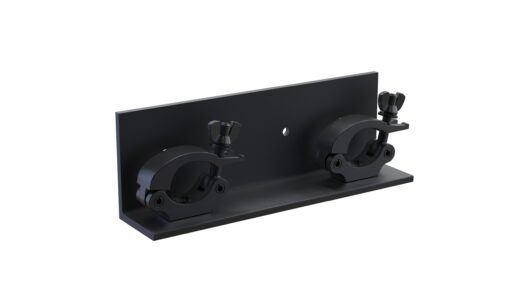

Wall Bracket Trusses and Pipes (Truss F33/F34)
69,00 € – 75,00 €
incl. VAT plus shipping costs
- Wall bracket for attaching trusses and pipes

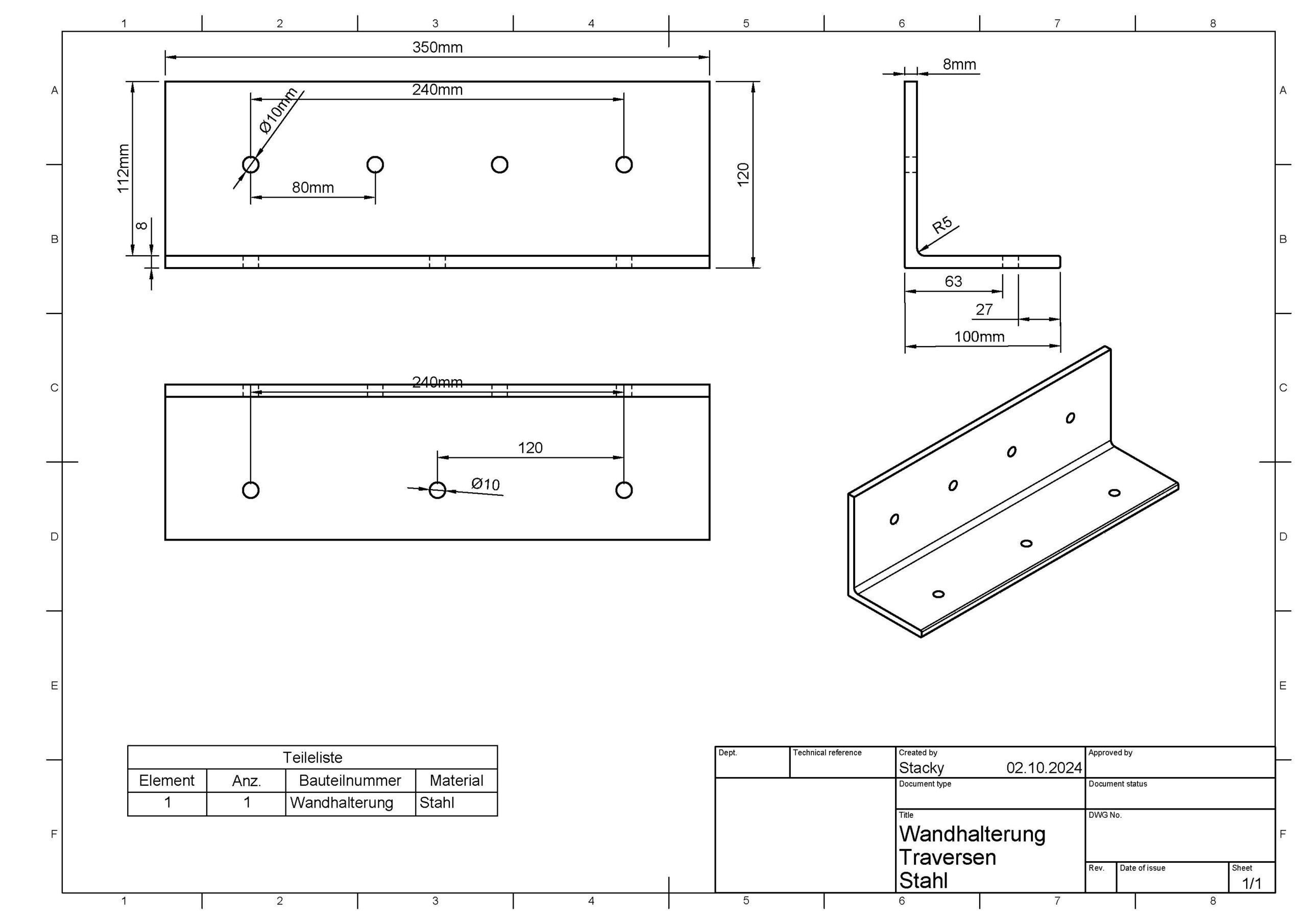

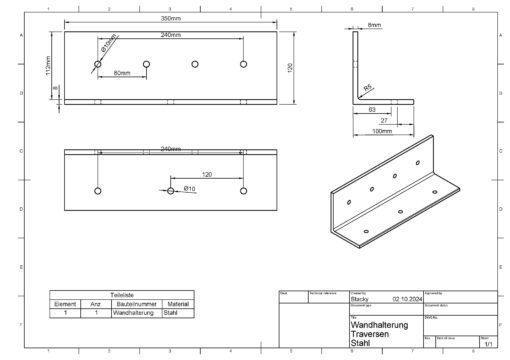

- Width 35cm, Height 12cm, Depth 8cm (see drawing)
- Made of 8mm steel (S235)
- Including Coupler 50mm Rigatec 200kg with TÜV (optionally also 500kg)
- Suitable for well-known F33/34 truss systems (variant double coupler)
- Also for fastening individual pipes
- Available in galvanized steel and black powder-coated version (RAL 9005). Other colors possible on request.
- Individual holes possible (at the same price)
Wall bracket for holding truss pipes individually or suitable for F33 and F34 systems. Even without ceiling suspension, pipes and trusses can be mounted from wall to wall with the help of this bracket.
The bracket is made of 8mm thick steel (S235) and contains the matching holes (10mm diameter) for the couplers. With the help of the four holes on the wall side, the panel can be mounted on the wall. A matching dowel set is included in the scope of delivery. The couplers (according to the selected variant) are also included.
The static load of the bracket is designed for 600kg (at the attachment point of the couplers). The couplers are TÜV-tested up to 200kg in vertical load. On request, 500kg couplers can also be supplied.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Surface | Galvanized Steel – Aluminum Coupler, Black powder-coated steel – Black couplers |
| Number of couplers | Single Coupler, Double Coupler (F33/F34) |
